Demonstration of LUCID

If you install Adobe Flash version 7 or later, then this movie will be interactive for easier viewing, allowing you to:

  • click on the animation to pause/resume
  • click on the timeline slider to jump to that point in the animation

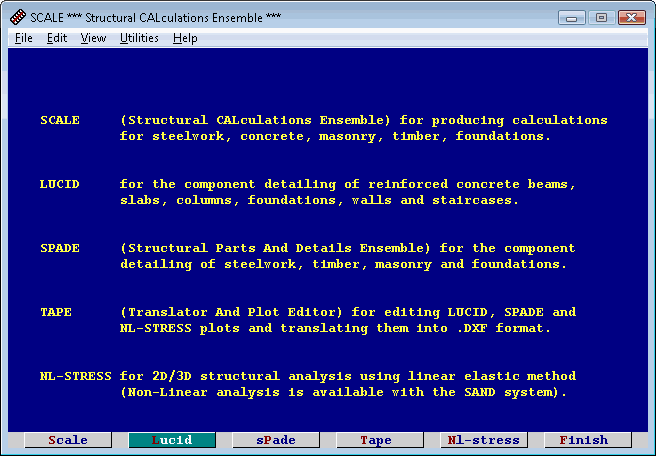

Demonstration of using LUCID proforma 710, for the production of a detail drawing for an in-situ concrete staircase. The demo starts by accepting the defaults, then demonstrates adding mark-up to the drawing. A bar bending schedule is then automatically produced using LUCID proforma 910, these calc files are then combined, saved to pdf using the built-in pdf writer, and then displayed with the pdf viewer.

Demo recorded on Windows Vista Business 64-bit.
